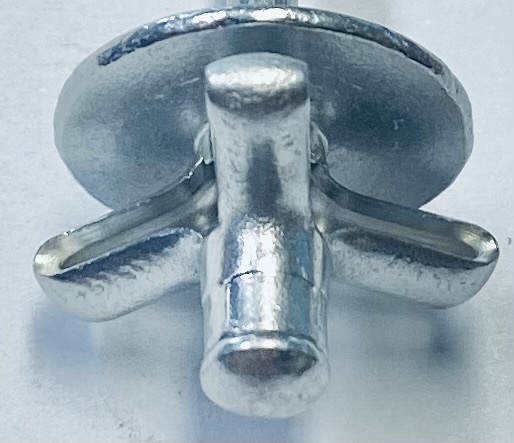

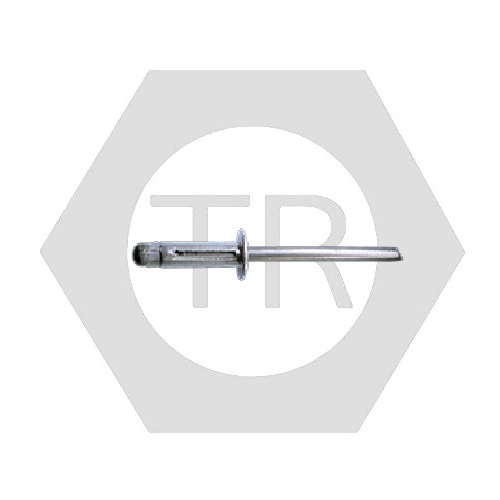

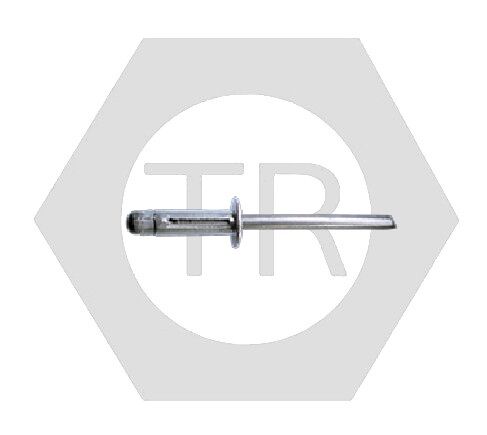

All Aluminium Bulb Tite (TRI-FOLD) Rivet

  • Open Dome Head (Truss)
  • Body Dia. - 4.0mm (5/32")
  • Body Length: 18.8mm
  • Grip Range: 1.0-7.0mm
  • Hole: 4.2-4.5mm

Applications

  • Soft material such as wood
  • Insulation
  • Plastic
  • Plastic board

Advantage:

  • Resists pull-out and cracking the work piece
  • Excellent for brittle and soft materials like plastics
  • Extra large secondary head provides more bearing surface
  • With the wide spreading tail, this rivet has a greater tolerance of oversized holes and offer a wide grip range

SKU AADBT5-4
Barcode # 9352988029483
Shipping Weight 0.6100kg
Shipping Width 0.090m
Shipping Height 0.120m
Shipping Length 0.120m
Shipping Cubic 0.001296000m3
Unit Of Measure 500
