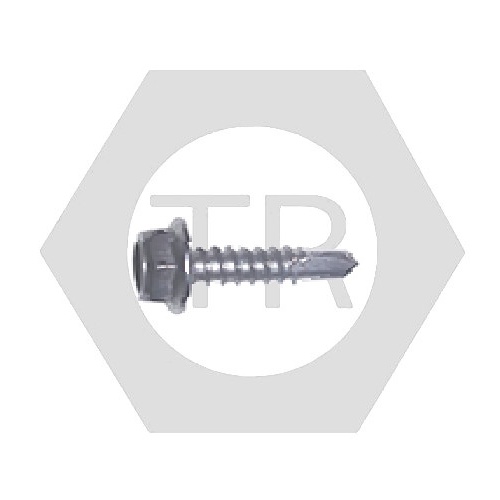

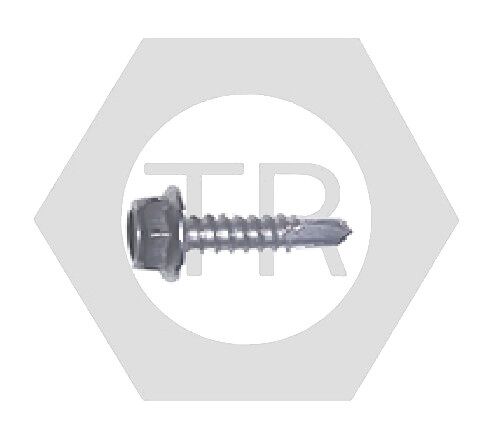

Self Drilling Screws - are designed to have a drill-shaped point for use with metal, without having to drill a pilot hole beforehand.

  •   Stainless Steel (YUS 550)
  •   Flange Hex. Head - 5/16 Hex
  •  10G screws - 4.8mm
  •  16TPI - Coase - Fully thread
  •   25mm Lenght
  •   #2 drill point -  Drill Capacity: Steel < 3.0mm

Pack Qty.:   1000pcs/pack     Bulk=6pack=6,000pcs

Features:

  • YUS 550 Stainless  Self Drilling performance superior to Bi-Metal 304, replacement for A2 304 Self-Drilling Bi-Metal Screws.
  • High-Strength heat-treated martensitic stainless steel suitable for direct sheet metal application.
  • High Hardness (Min. 600HV) and strength equivalent to G410 Stainless Steel.
  • Superior corrosion resistance equivalent to A2 304 Stainless Steel.

Applications:

  • For Light duty purpose
  • Stitch roof deck and wall panel sidelaps
  • Redidential frame construction
  • Brick ties to steel framing

Approved for ISO category 4 environments

MADE IN TAIWAN



SKU A5SDH10-1625
Barcode # 9352988060202
Shipping Weight 3.9240kg
Shipping Width 0.130m
Shipping Height 0.100m
Shipping Length 0.240m
Shipping Cubic 0.003120000m3
Unit Of Measure 1000
