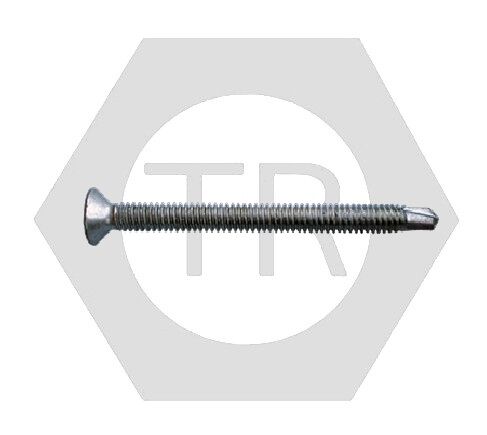

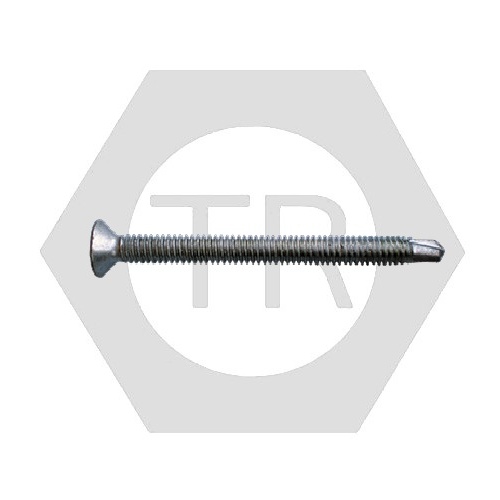

Self Drilling screws - are designed to have a drill-shaped point for use with metal, without having to drill a pilot hole beforehand.

  •     Carbon Steel (C1022)
  •     Ruspert plated - complies with AS3566 Class 4
  •     Countersunk Head - Phillips #2 Drive
  •     10G screws - 4.8mm
  •     24TPI - Fine thread - Fully thread
  •     50mm Lenght
  •    #3 Drilling point - Drill Capacity: Steel <5.0mm

Pack Qty:   500pcs/pack    Bulk=8pack=4,000pcs

Applications:

  • Best choice for fastening in window or door frames purpose
  • Using in flat surface required
  • Using in pro-drilled holes for fitting
  • Hinges, gates & fences.

Fine thread are designed for drive into thicker Metal. Fine threading has a higher tensile strength than coarse threading

Class 4 Screws

  • Suitable for external use in heavy industrial or severe marineenvironments.
  • Heavy industrial environments refer to atmosphere with medium pollution from industry.
  • Severe marine environments refer to coastal areas with high airborne salinity.
  • Corrosivity as classified in accordance with AS 3566-2002, 5.4 and ISO 9223.





SKU SDCC10-2450
Barcode # 9352988020251
Shipping Weight 2.6600kg
Shipping Width 0.130m
Shipping Height 0.100m
Shipping Length 0.190m
Shipping Cubic 0.002470000m3
Unit Of Measure 500
