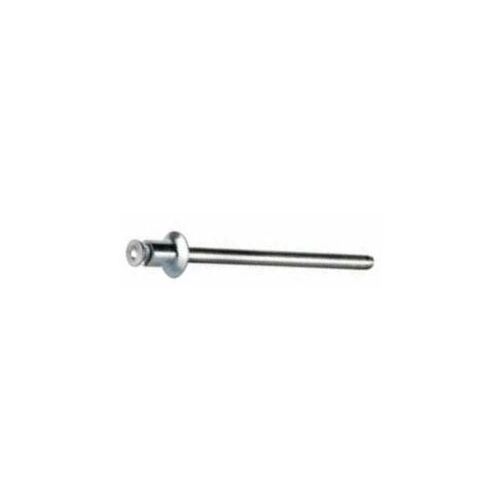

Pull-Thru All Steel Rivet Double Csk Hd. Rivet

  • Steel body / Steel Mandrel
  • Open Double Countersunk Head (1200)
  • Body Dia. - 3.0mm (1/8")
  • Body Length: 4.3mm
  • Grip Range: 3.5-4.0mm
  • Hole: 3.3-3.4mm

Pack Qty. 1000pcs/pack.  Bulk = 10pack = 10,000pcs


Demonstration Video (External Source: Dan Agostinelli - "POP Pull Thru" - Youtube)

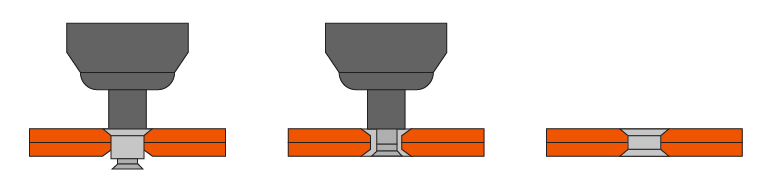

* Pull-Thru rivet are unique double countersunk blind rivets
* Pull-Thru rivet designed to set surface flush on both sides
  of an application
*It is suitable for sheet metal products with limited space,
  and there must be sink holes on both sides of
  the products that require riveting
*Pull-thru rivet is that after the riveting is completed,
  there is no nail head falling off, and the two riveting
  surfaces of the product are relatively flat.
Electronics industry
Many low-clearance industrial applications.
Barcode # 9352988070799
Unit Of Measure 1000
